CENTRIFUGAL BLOWERS

The characteristics of this series are: high efficiency, compact axial dimensions, and versatility, which make these fans suitable for industrial and nautical use. These fans are particularly suited to blowing air or fumes, even if they contain small quantities of dust, up to a maximum temperature of 80°C.

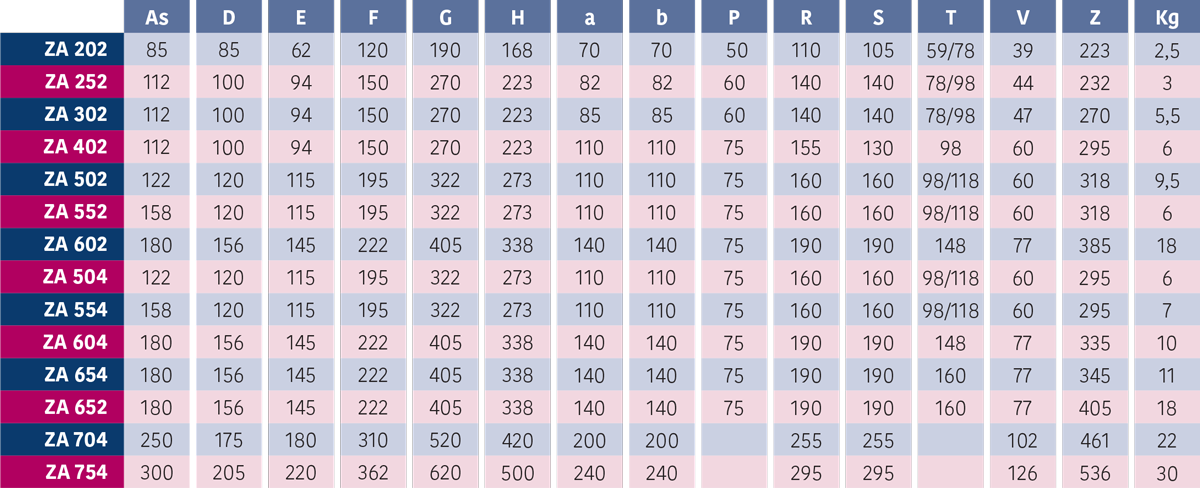

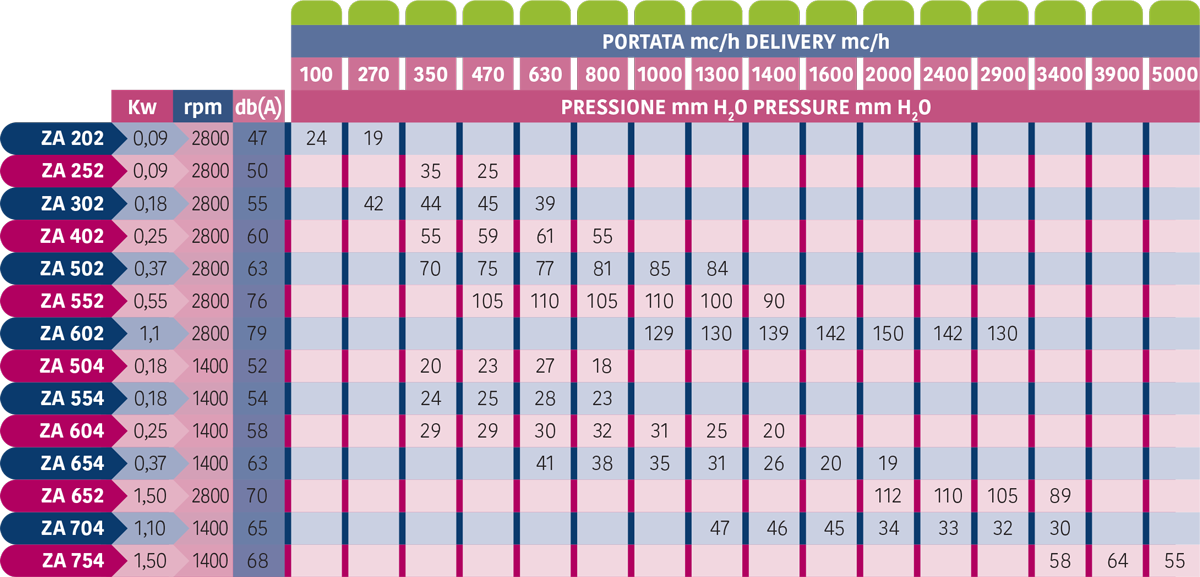

ZA Series

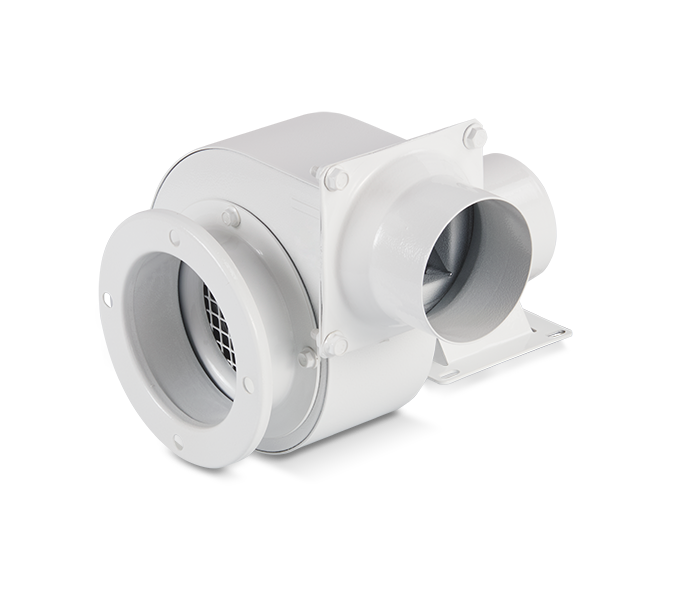

ZA 202

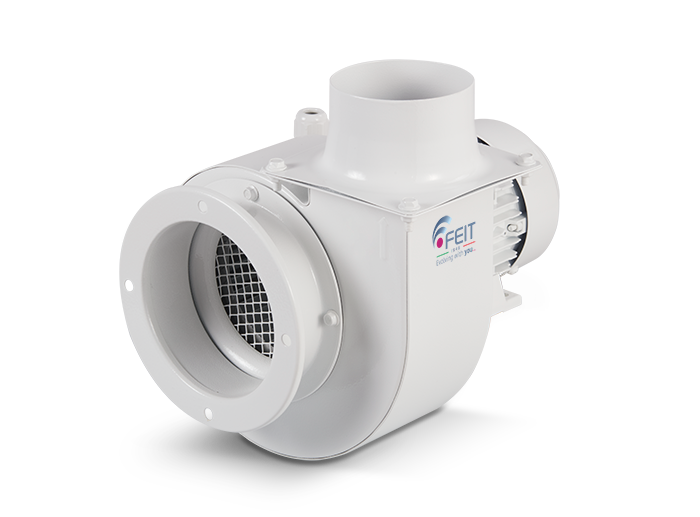

ZA 302

CHARACTERISTICS
  • Flange of support: sheet steel
  • Shaft: steel
  • Air propeller: light metal no-sparking/noryl
  • Motors: 12/24 volt d.c.; 230, 1 ph; 230/400 3 ph
  • Protection: IP55

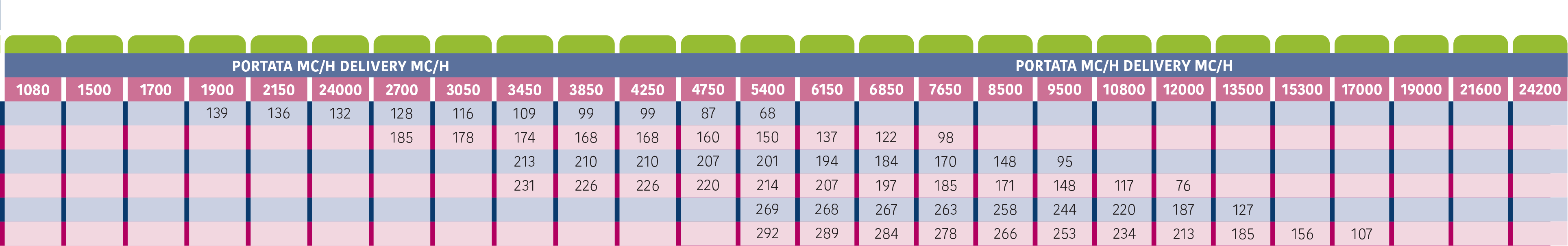

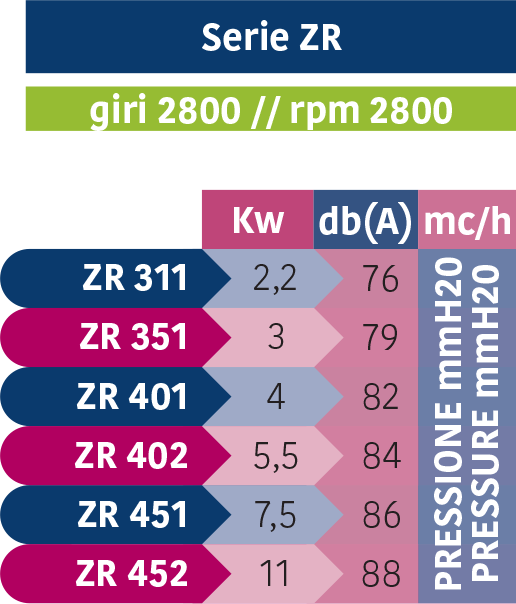

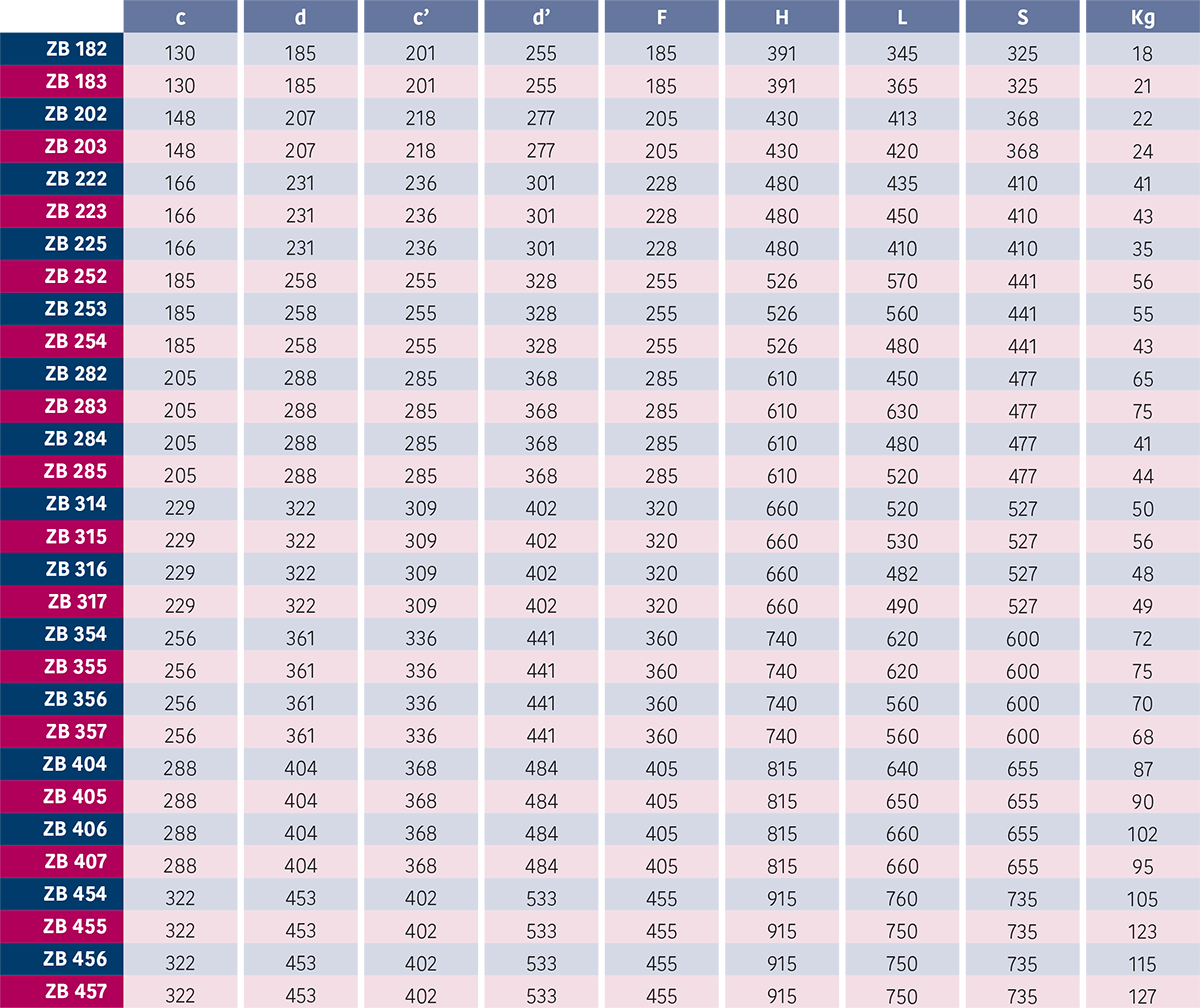

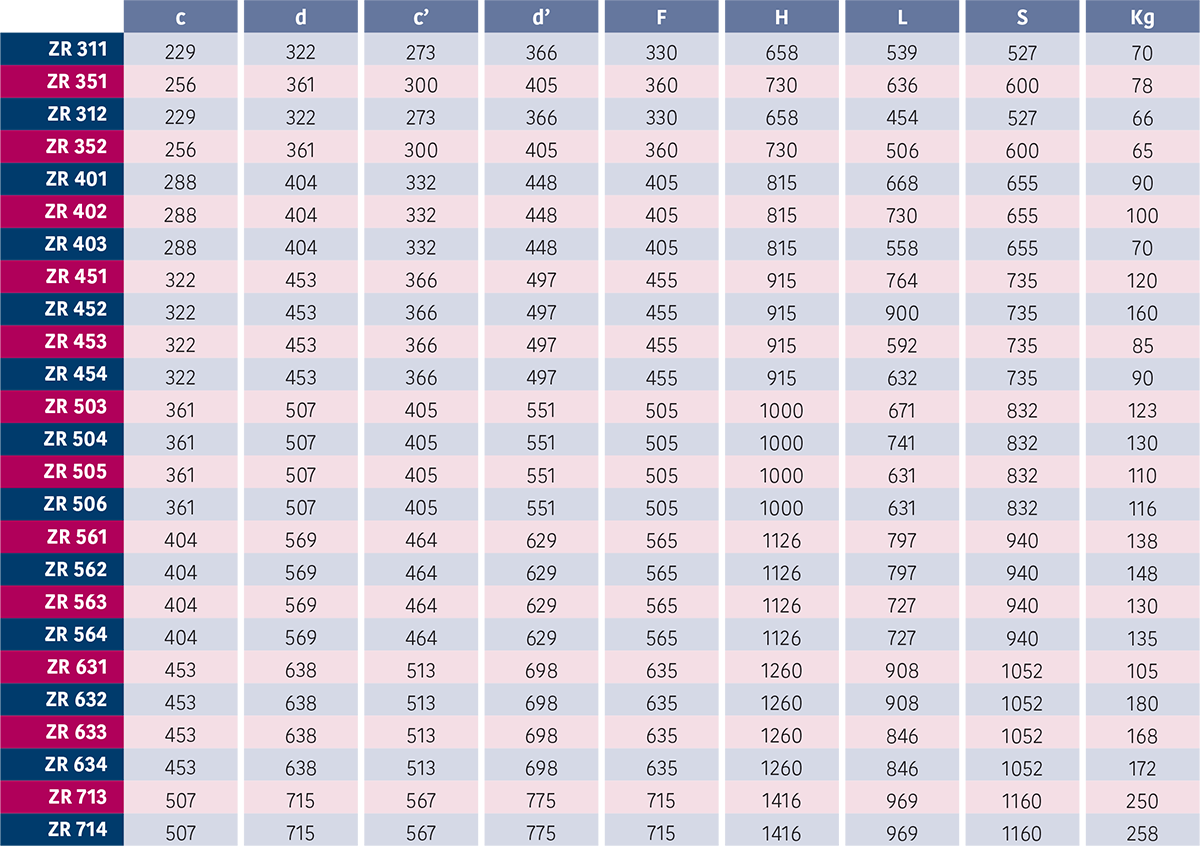

ZB-ZR Series
immagine_grande

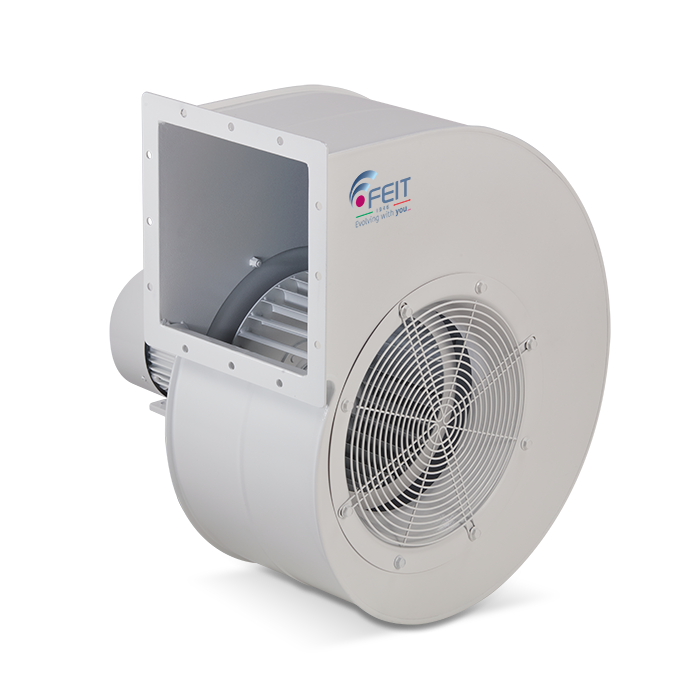

ZB 315

CHARACTERISTICS
  • Flange of support: sheet steel
  • Shaft: steel
  • Air propeller: light metal no-sparking/noryl
  • Motors: 12/24 volt d.c.; 230, 1 ph; 230/400 3 ph
  • Protection: IP55
FV-D Series – CENTRIFUGAL IN LINE FANS FOR CIRCULAR DUCTS
immagine_grande

FV-D 200

CHARACTERISTICS
  • Casing in weather-proof steel sheet.
  • Steel sheet motor supports with airflow straighteners.
  • External rotor motor IP44 protection ISO B, speed adjustable by electronic speed regulator. High efficiency backward blade impeller.
  • Terminal box in techno-polymer.
  • Its compact steel structure, external rotor motor, and centrifugal backward-bladed impeller ensure:
  • Easy installation
  • Flexible working by adjusting the rpm
  • High efficiency
  • Sturdiness and reliability
APPLICATIONS
  • FV D line is ideal to intake or exhaust air through circular ducting in: public locals, offices, shops, bars, pools, laboratories, kitchens, toilets, workshops, restaurants etc.
FV-D Series Accessories

SB

WALL BRACKETS

To be used to fix the fan on the wall

RG

PROTECTION GRID

Required to prevent accidental contact with rotation parts. mandatory for free air

FA

HOSE CLAMP

To be used to connect the fan to the ducting.

SRE

SPEED

SH

SHUTTER

Backdraught butterfly shutter
